5747847-4
Manufacturer:
TE Connectivity
Mfr.Part #:
5747847-4
Datasheet:
Description:

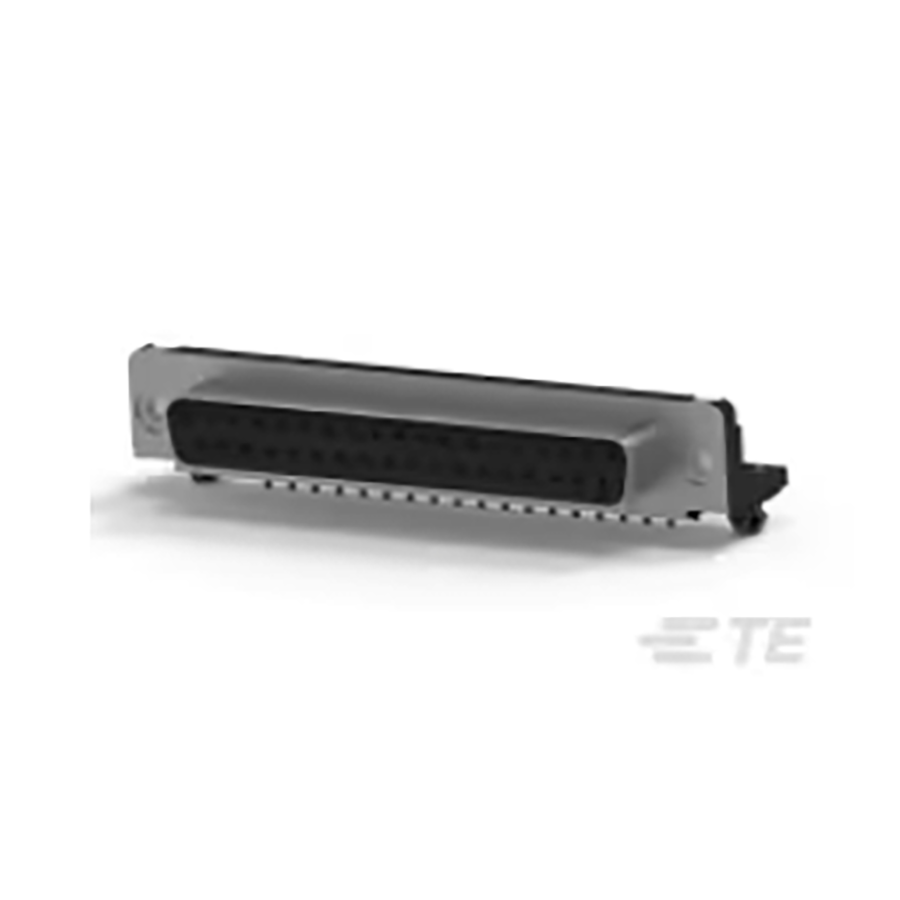

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:37 Solder Female
| Parameter | Value |
|---|---|
| Length | 69.31 mm |
| Width | 12.54 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 37 |
| Material | Steel |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 18.79 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.7686 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 37 |
| Current Rating | 6 A |
| Max Voltage Rating (DC) | 125125 V (125.125 kV) |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 37 |
| Body Material | Metal, Steel |
| Hole Diameter | 3.18 mm |
| Max Supply Voltage (DC) | 125 V |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 125 V |
| Max Supply Voltage (AC) | 125 V |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Connector Lock | With |
| PCB Mount Retention | With |
Stock: 2797
Distributors
pcbx
pcbxUnit Price$4.61132
Ext.Price$4.61132
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.61132 | $4.61132 |
| 10 | $3.91808 | $39.18080 |
| 25 | $3.67233 | $91.80825 |
| 50 | $3.48418 | $174.20900 |
| 100 | $3.30567 | $330.56700 |
| 300 | $3.13631 | $940.89300 |
| 500 | $2.97563 | $1487.81500 |
| 1000 | $2.82322 | $2823.22000 |
